Description

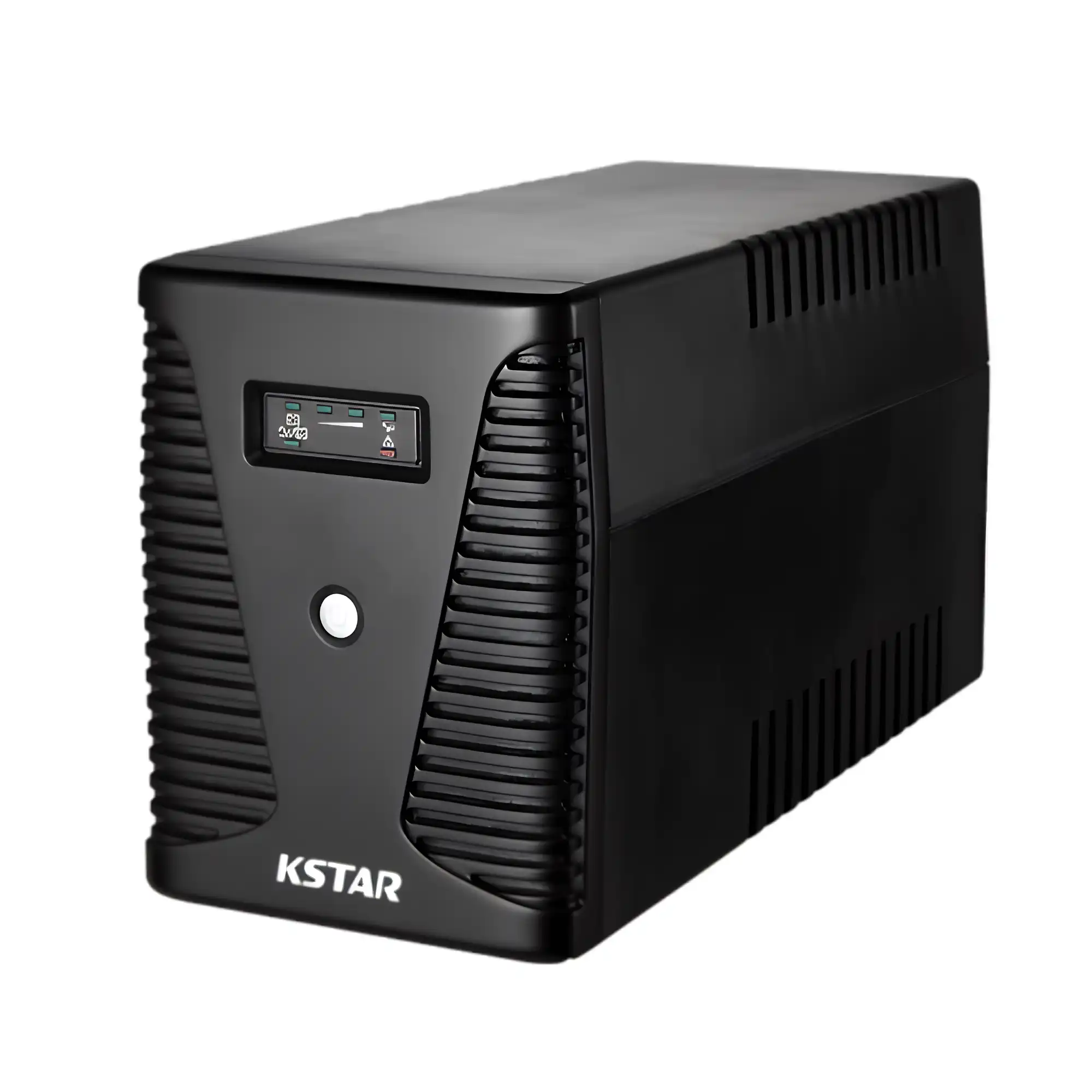

It operates with a nominal input voltage of 110/120 VAC or 220/230/240 VAC, with a wide operating voltage range of 81–145 VAC or 162–290 VAC, and a frequency range of 50/60 Hz (±10%). The UPS delivers a simulated sine wave output at nominal voltage ±10% in battery mode, with frequency regulation of 50/60 Hz ±1 Hz and a fast transfer time of typically 2–6 ms (maximum 10 ms), ensuring minimal interruption during power disturbances. It is equipped with a battery configuration of 12V / 7Ah × 2 units, with a typical recharge time of 6–8 hours to reach 90% capacity. The system includes full protection features such as overload and overcharge protection, along with LED or optional LCD display indicating AC mode, battery mode, load level, and battery status. Additional features include AVR boost and buck stabilization, cold start capability, auto restart when AC power recovers, built-in self-diagnostic function, modem/LAN protection, and optional USB/RS232 communication for monitoring. Designed for quiet operation (<40 dB), it operates within 0–40°C and up to 95% non-condensing humidity, with a compact footprint of approximately 149.3 × 338 × 162 mm and a weight of around 8 kg, making it suitable for reliable and efficient backup power in office and small business environments. Termasuk Baterai, Boks Baterai dan Jumper | Tanpa Kabel In/Out | Tanpa Panel In Out | Tanpa Kabel BC
