Description

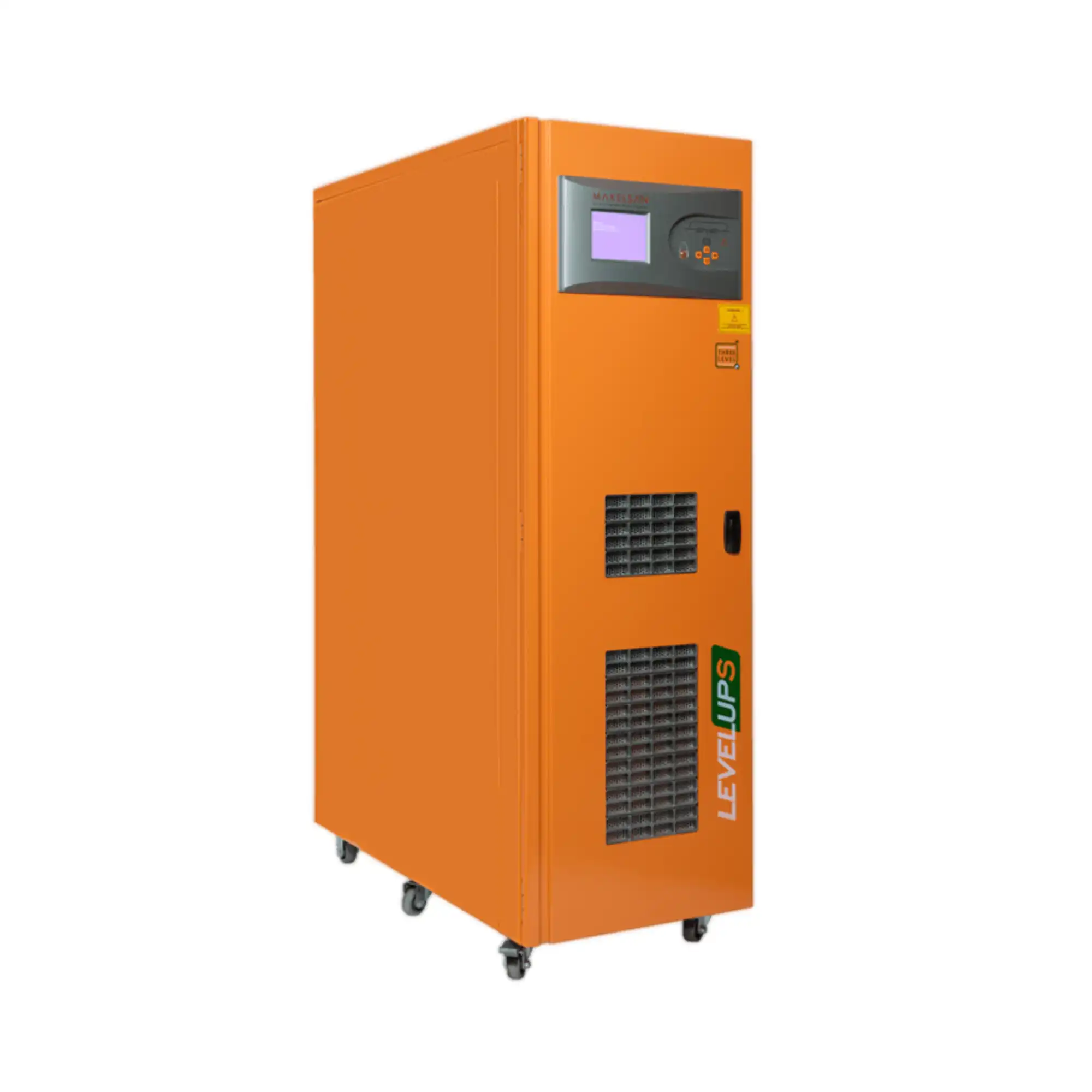

It operates with an input voltage of 380/400/415 VAC (3 Phase + N) with wide tolerance, frequency range of 45–65 Hz, input power factor ≥0.99, and low input THDi <3%, ensuring efficient and clean power draw. The UPS delivers an output voltage of 380/400/415 VAC with high precision (±1% static, ±3% dynamic), output power factor of 1.0 (10 kVA = 10 kW), voltage THD <2% (linear load) and <5% (non-linear load), and a crest factor of 3:1. It provides overload capability of 125% for 10 minutes and 150% for 1 minute, with overall efficiency up to 94.5%. The system utilizes a battery configuration of 60 × 12V VRLA units with adjustable charging capacity (typically 12.5% of active power) and advanced battery management features. Designed for maximum availability, it supports parallel operation up to 8 units (N+1 redundancy), dual input, static and manual bypass, and power walk-in functionality for controlled startup. It includes a user-friendly 320×240 graphical display, RS232 standard communication with optional RS485 and SNMP, and extensive monitoring capabilities. Built for robust environments, it operates at 0–40°C (UPS) and 0–25°C (battery), with IP20 protection, humidity up to 95% non-condensing, and low noise levels (<53 dBA), making it an ideal solution for mission-critical power infrastructure. Termasuk Baterai, Boks Baterai dan Jumper | Tanpa Kabel In/Out | Tanpa Panel In Out | Tanpa Kabel BC
