Description

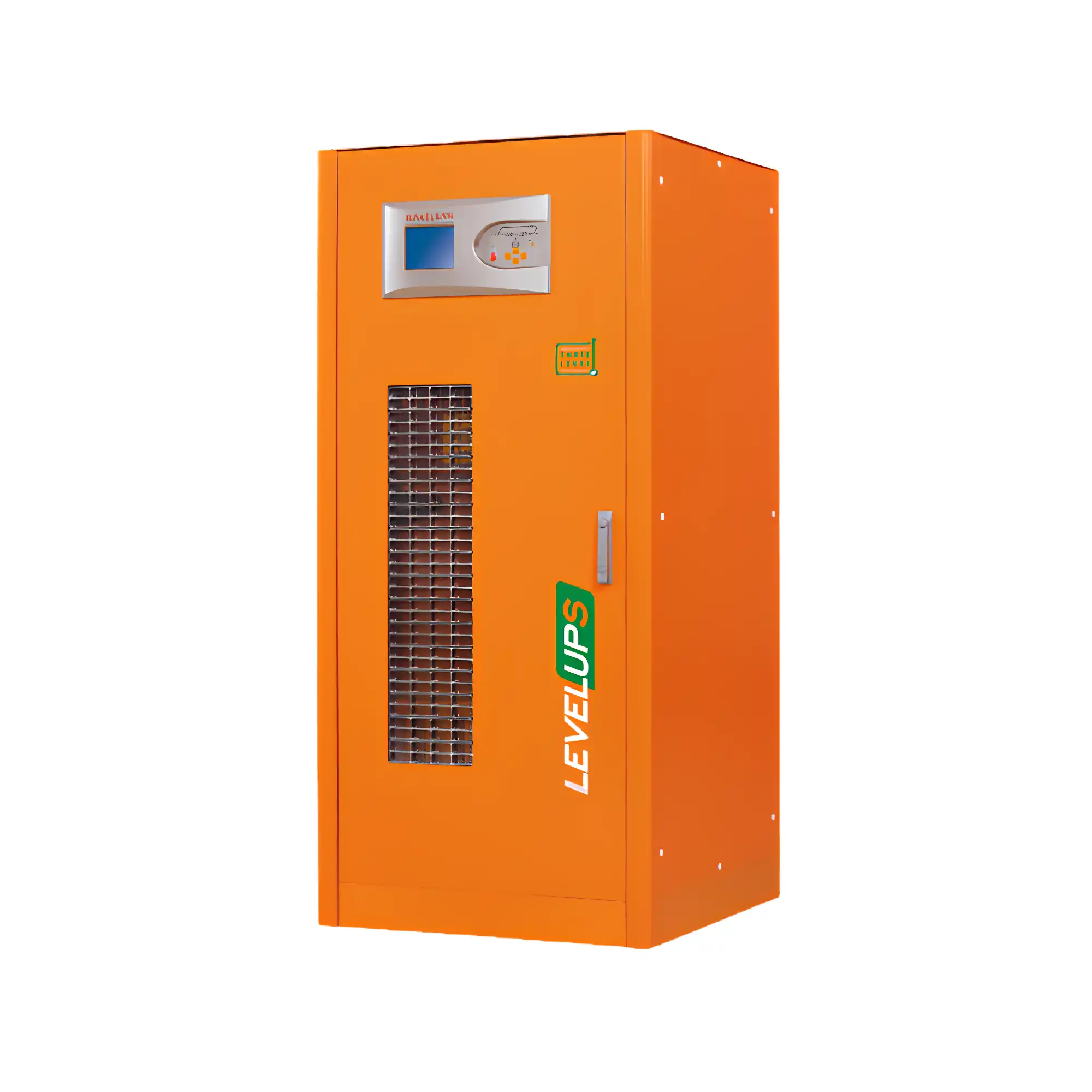

It operates with an input voltage of 380/400/415 VAC (3 Phase + N) with a tolerance of -20% to +15%, frequency range of 50/60 Hz ±10%, input power factor >0.99, and low input THDi <3%, ensuring efficient and clean power consumption. The UPS provides a stable output voltage of 380/400/415 VAC with ±1% static and ±3% dynamic regulation, output power factor of 1.0 (100 kVA = 100 kW), output THD <1% for linear loads and <3% for non-linear loads, and a crest factor of 3:1. It supports overload capacity of 125% for 10 minutes and 150% for 1 minute, with ECO mode efficiency up to 99%. The battery system supports VRLA or GEL types with a configuration of 60 × 12V batteries, adjustable charging capacity (approximately 12.5% of active power), and recharge time of 6–8 hours, with options for internal or external battery packs. Designed for high availability, the system supports parallel operation up to 8 units (N+1 redundancy), dual input, static and manual bypass, and advanced battery management features. It includes a user-friendly 320×240 graphical LCD display, RS232 communication as standard with optional RS485 and SNMP, and extensive monitoring capabilities. Physically, the unit has cabinet dimensions of approximately 810 × 820 × 1705 mm (W × D × H) with a net weight of around 353 kg, and operates within environmental conditions of 0–40°C, up to 95% non-condensing humidity, IP20 protection, and noise level below 65 dBA, making it an ideal solution for high-reliability power infrastructure.
Termasuk Baterai, Boks Baterai dan Jumper | Tanpa Kabel In/Out | Tanpa Panel In Out | Tanpa Kabel BC
