Description

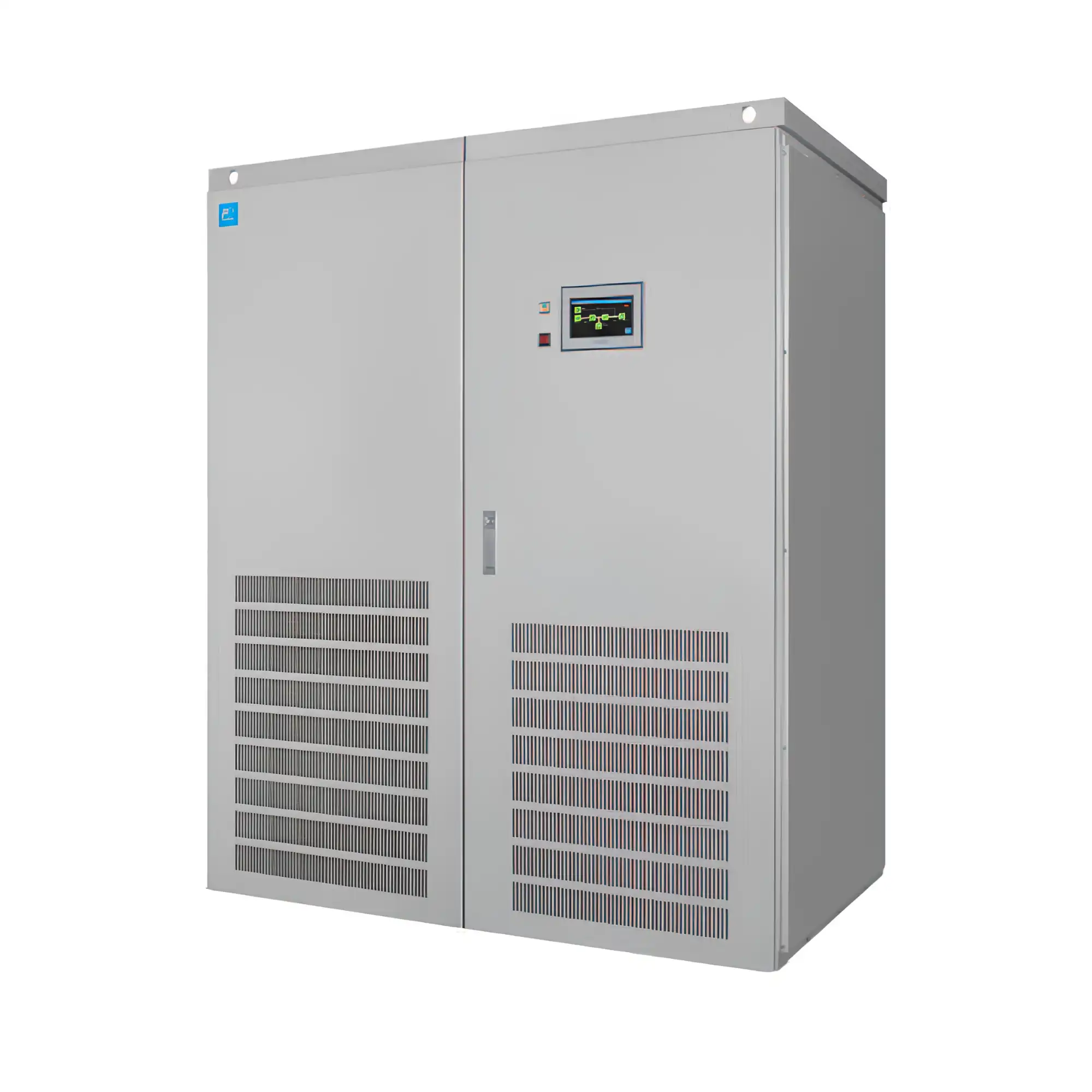

It operates with an input voltage of 380/400/415 VAC (±15%), 3-phase 4-wire configuration, frequency 50/60 Hz ±5%, input power factor >0.99, and THDi <5%, ensuring optimal power quality and minimal harmonic distortion. The output provides 380/400/415 VAC ±1% with frequency stability of ±0.01 Hz, rated power factor of 0.9, voltage THD ≤2% (linear load) and ≤3% (non-linear load), along with overload capability of 125% for 10 minutes and 150% for 1 minute. The DC system operates between 480–528 VDC with floating charge up to 594 VDC depending on battery configuration. The unit features advanced reliability functions including synchronized bypass transfer, parallel redundancy, and standby redundancy systems, as well as soft-start and power walk-in functions to minimize inrush current. Designed with a compact footprint (1600 × 1000 × 2000 mm) and weighing approximately 1700 kg, it utilizes forced air cooling, supports indoor installation (IP20), and operates within 0–40°C and up to 90% non-condensing humidity. Additional capabilities include SNMP/Modbus communication (optional), battery life monitoring, and high system availability, making it an ideal solution for mission-critical power infrastructure.
Termasuk Baterai, Boks Baterai dan Jumper | Tanpa Kabel In/Out | Tanpa Panel In Out | Tanpa Kabel BC
