Description

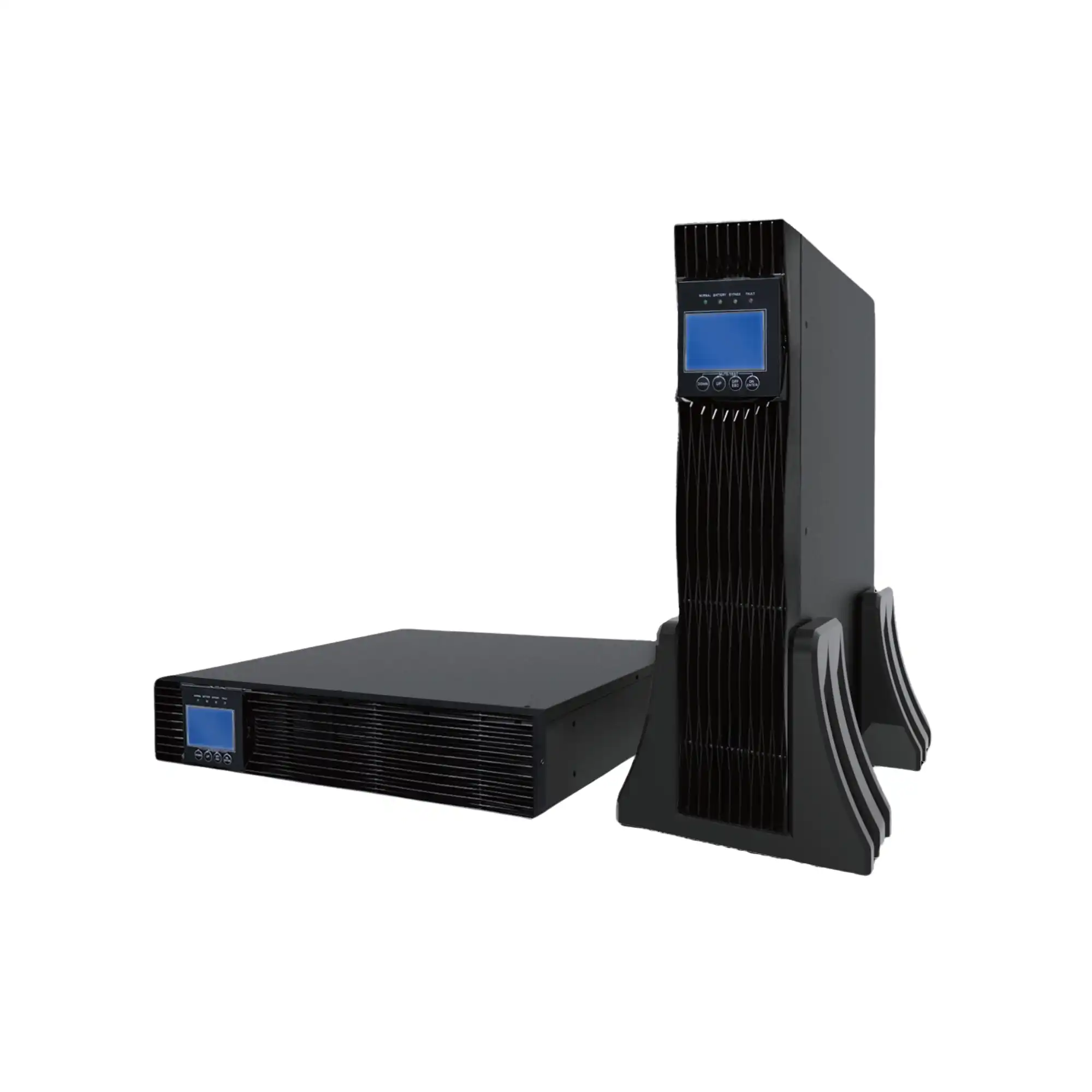

It utilizes true online double conversion topology with PFC rectifier and SPWM inverter control technology, ensuring stable and clean sine wave output under all conditions. The UPS operates with an input voltage range of 120–295 VAC, frequency range of 50/60 Hz ±5% (configurable up to ±10%), and input power factor ≥0.99. It delivers an output voltage of 220/230/240 VAC with ±2% accuracy, output power factor of 1.0, and pure sine wave output with THD <3% (linear load), with zero transfer time (0 ms) during power disturbances. The system supports overload capability of 105%–129% for 60 seconds, 130%–150% for 30 seconds, and >150% for 300 ms. The battery system utilizes 3 × 12V / 7Ah batteries (36 VDC) with optional external battery support and maximum charging current of 1–5 A. It features LED indicators (optional LCD), RS232 communication (with optional USB, SNMP, or dry contact), and comprehensive protection including overload, short circuit, over-temperature, and low battery protection. Designed in a compact 19-inch rack/tower convertible form factor, it has dimensions of approximately 440 × 500 × 2U and a weight of around 14 kg (standard), operating within 25–30°C, 0–95% non-condensing humidity, making it suitable for space-efficient and reliable critical power backup solutions.
Baterai Built In
