Description

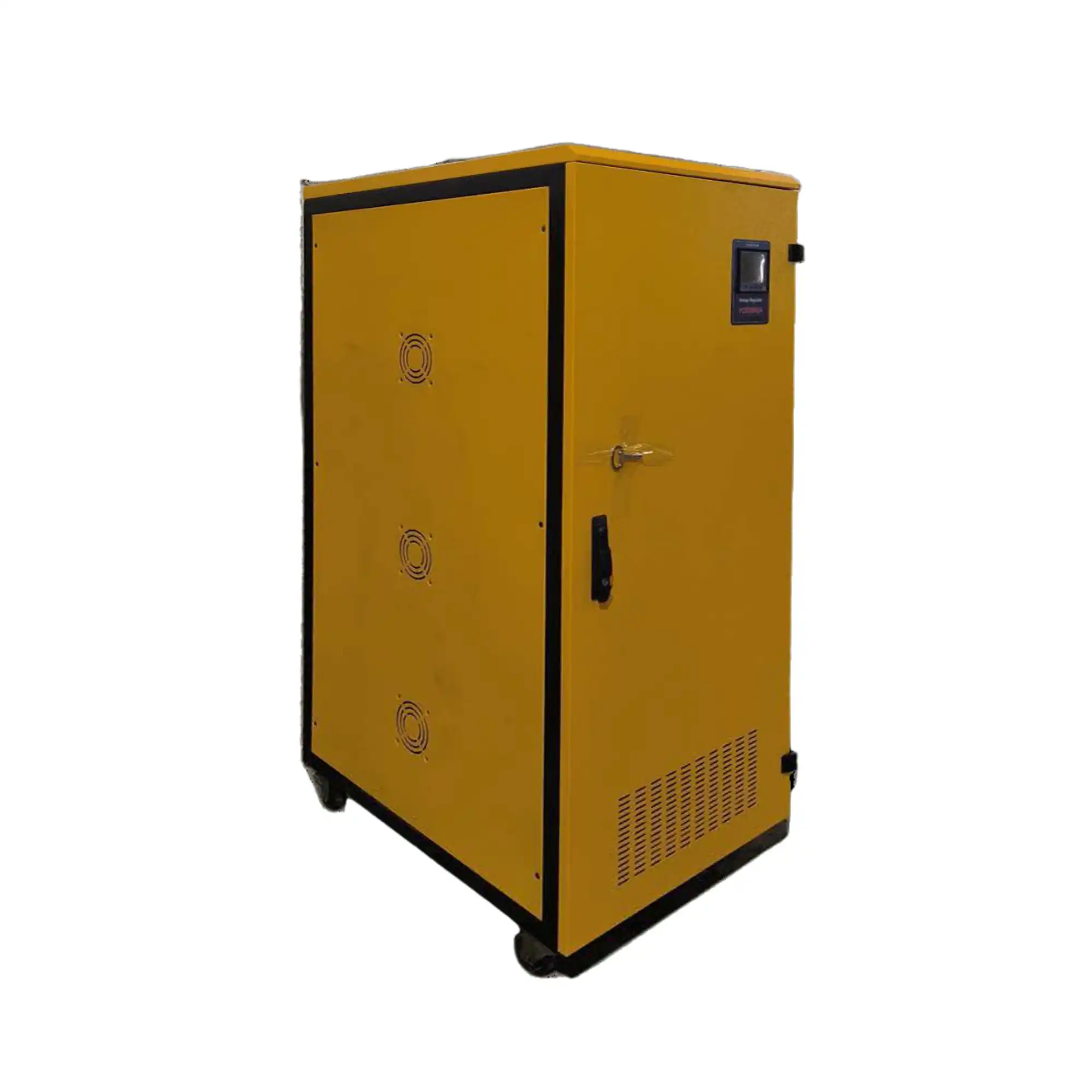

It operates with an input voltage range of 275–440 VAC and frequency range of 47–65 Hz, ensuring stable operation under fluctuating grid conditions. The unit delivers a regulated output voltage of 380/400/415 VAC with ±2% accuracy, featuring an extremely fast correction speed of approximately 1000 V/sec and a response time of around 20 ms, significantly faster than conventional servo stabilizers. It supports overload capability of up to 200% for 10 seconds and up to 500% for 20 ms, with advanced electronic protection against short circuit, overcurrent, and overload conditions. Equipped with TRUE RMS measurement technology, it ensures accurate monitoring of input/output voltage and network parameters, along with a digital display interface and smart fan cooling system. The system is designed to handle both linear and non-linear loads effectively, with high efficiency exceeding 97% at full load. Built for industrial environments, it operates within -10°C to 50°C, up to 90% non-condensing humidity, and altitude below 2000 meters, with low noise level (<50 dB) and IP20 protection. Physically, the unit has dimensions of approximately 117 × 41 × 63 cm (H × W × D) and a weight of around 130 kg, making it a compact yet powerful solution for fast-response voltage stabilization.
Kabel 10 Meter (In 5 Meter + Out 5 Meter) | Panel In Out 1 Unit | Kabel BC 10 Meter
