Description

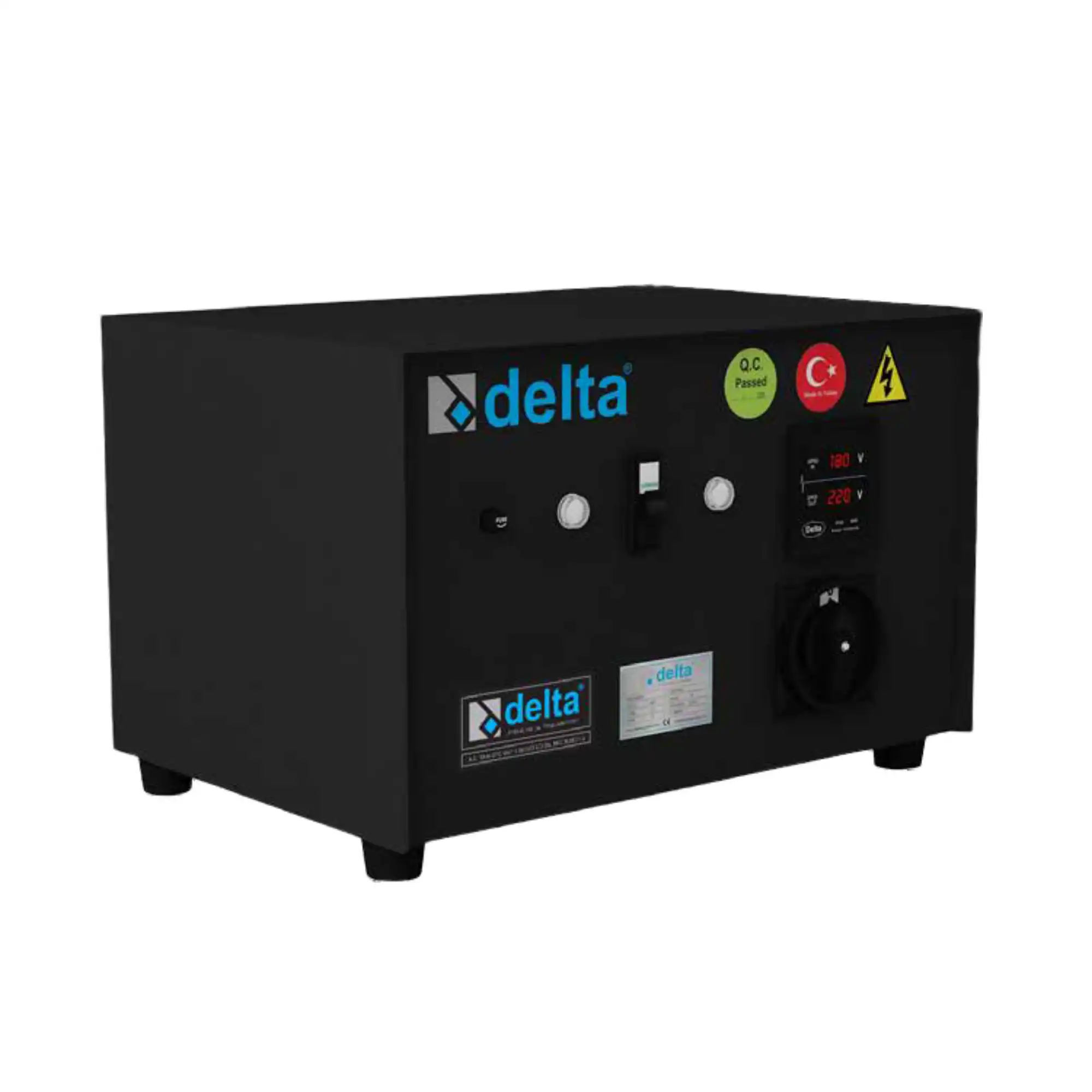

It operates with an input voltage correction range of 160–260 VAC (or 110–240 VAC selectable) and a wide working range of 90–285 VAC, with an operating frequency of 47–65 Hz, ensuring stable performance under fluctuating grid conditions. The unit delivers a regulated output voltage of 220/230/240 VAC with ±1% precision, supported by a fast correction speed of approximately 90 V/sec and an overload capability of up to 200% for 10 seconds. Utilizing a servo motor with microprocessor-based control, it ensures high reliability, rapid response, and efficient voltage stabilization, achieving total efficiency above 96%. The system is equipped with comprehensive protection features including overcurrent, low/high voltage protection, and output protection against overload and short circuit conditions. It includes a digital true RMS panel meter for monitoring input and output parameters, a smart fan cooling system, and a manual mechanical bypass switch for operational flexibility. Designed for robust operation, it supports environmental conditions of -10°C to 50°C, up to 90% non-condensing humidity, and altitude below 2000 meters, with low acoustic noise (<50 dB) and protection class IP20/IP25. Physically, the unit has dimensions of approximately 75 × 50 × 50 cm (H × W × D) and a weight of around 55 kg, making it a reliable solution for higher-capacity voltage stabilization applications.
Kabel 10 Meter (In 5 Meter + Out 5 Meter) | Panel In Out 1 Unit | Kabel BC 10 Meter
